Tilt Trim Motor 809885A1 for Mercury Mariner 30–125HP 809885T2 10827

Tilt Trim Motor 809885A1 for Mercury Mariner 30–125HP 809885T2 10827

Regular price $300.00 NZD
Regular price Sale price $300.00 NZD
Sale Sold out
Shipping calculated at checkout.

Tilt Trim Motor 809885A1 for Mercury Mariner 30–125HP 809885T2 10827

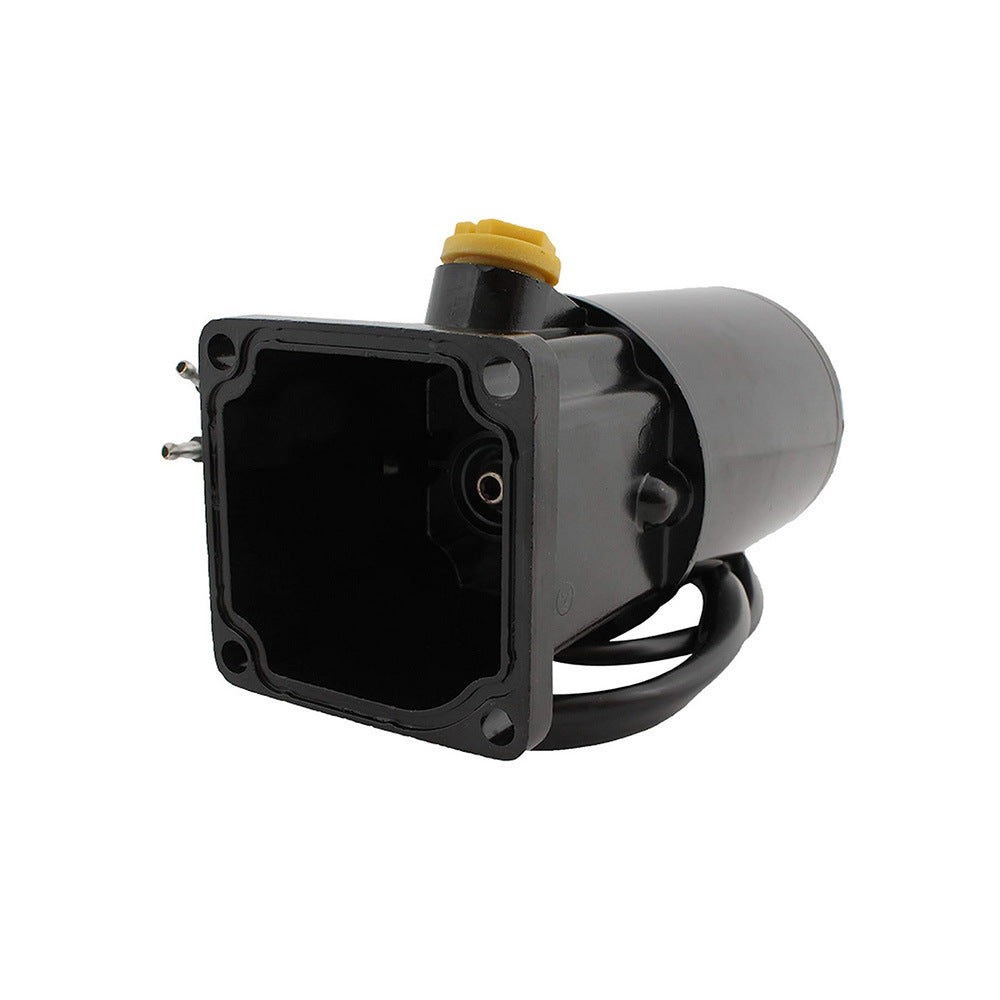

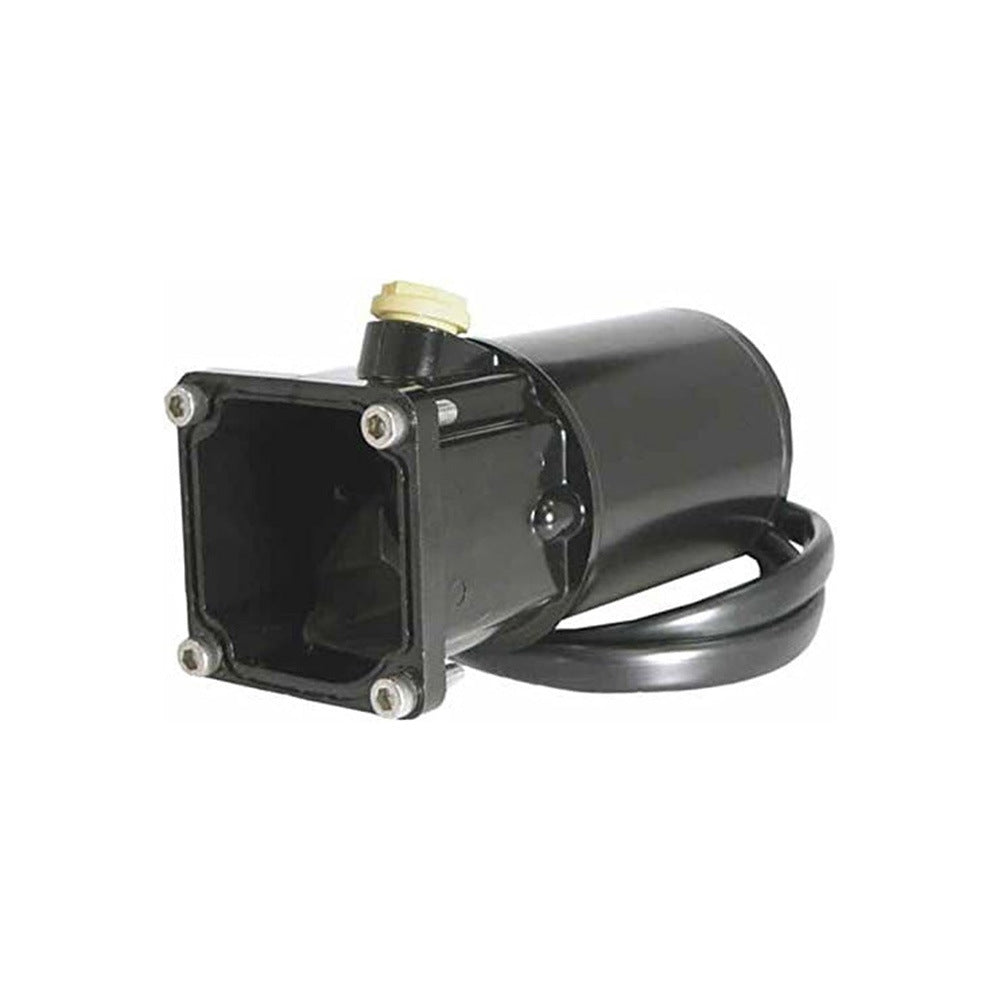

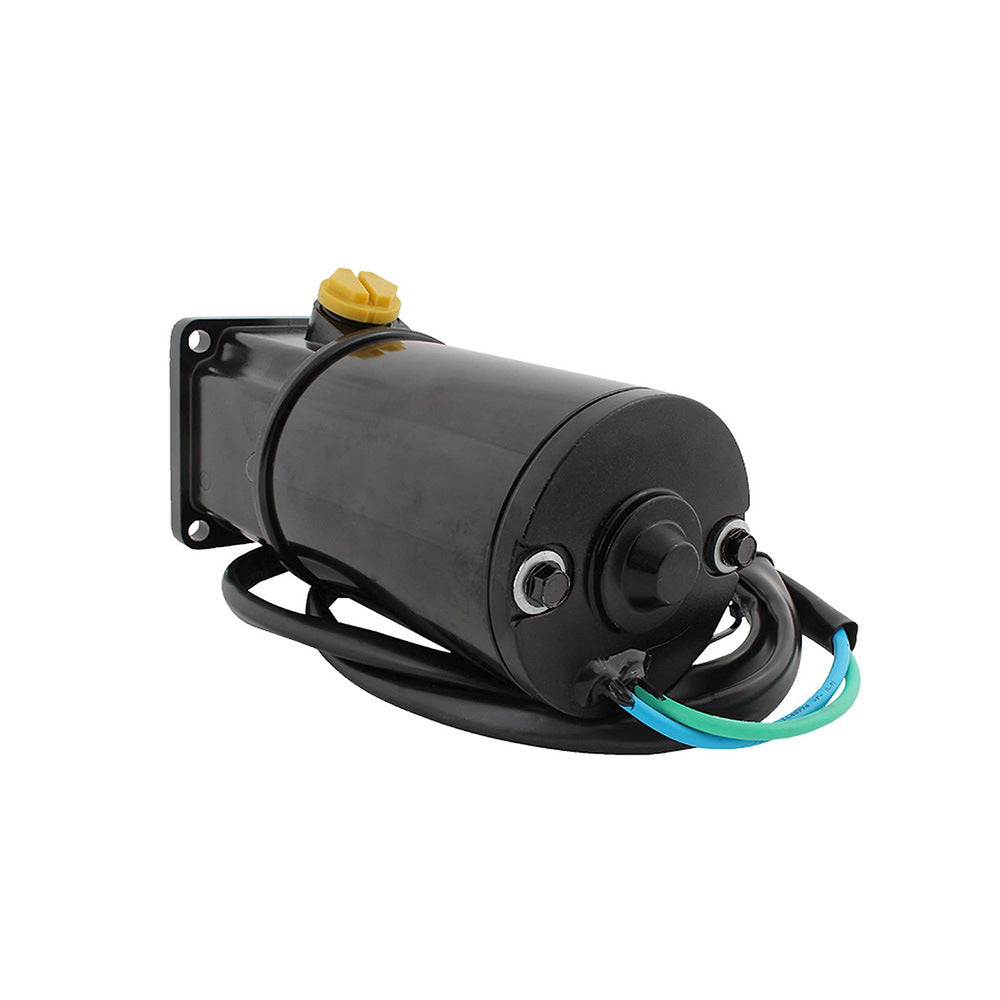

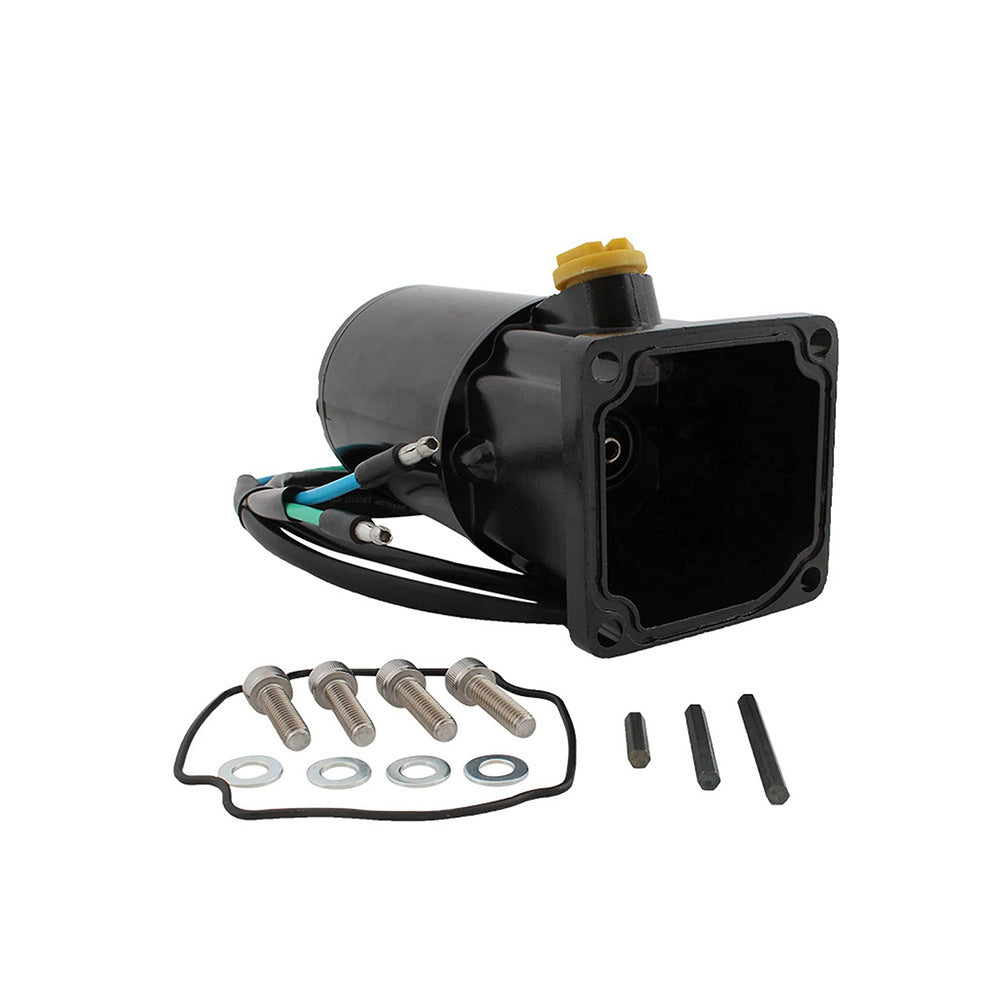

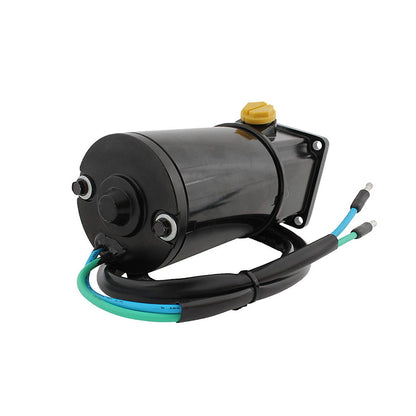

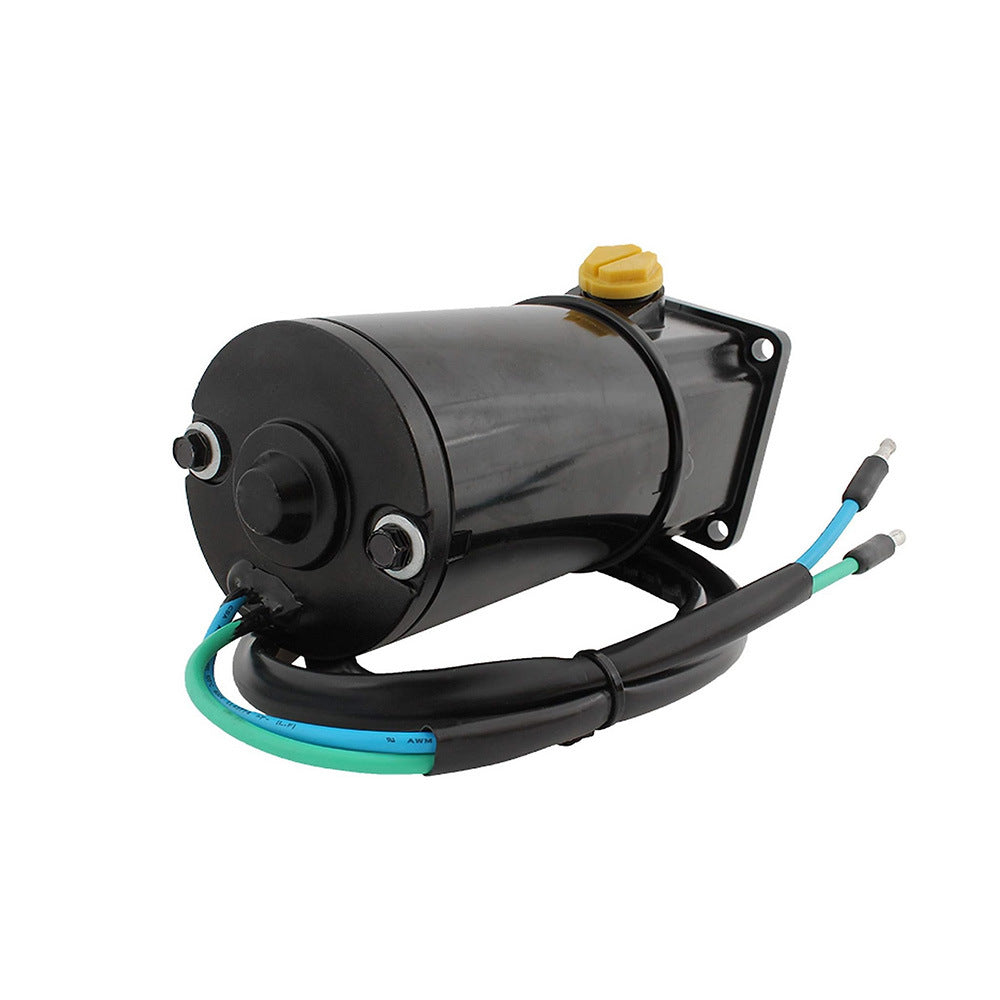

12V tilt and trim motor with reservoir, suitable for Mercury and Mariner outboard motors ranging from 30 to 125 HP. Features a 2-wire connection with bullet connectors, hollow hex shaft, and reversible rotation. Includes wire harness (2 x 3.5-foot) and hardware with O-ring.

Compatible Models:

Mercury Marine Tilt & Trim 50–125 HP
Mariner Tilt & Trim 50–125 HP
Force Marine Tilt & Trim 30–125 HP

OEM Part Numbers Replaced:

Mercury / Mariner: 809885A1, 809885A2, 809885T2, 811674, 811699, 813447, 819479A1, 819480A1, 885654T1, 885654T2
Lester: 10827
Sierra Marine: 18-6777
Spider Marine: TM10827
Arco Marine: 6276
API Marine: PT496NK-2

Specifications:

Voltage: 12V
Rotation: Reversible
Shaft: Hollow Hex
Connection: 2-wire with bullet connectors
Wire Length: Two wires, each 3.5 ft

Includes: Hardware kit and O-ring

Shipping & Collection


All products are stocked in our Auckland warehouse and are ready for dispatch.

Orders are typically dispatched on the same business day or the next working day.

Nationwide courier delivery is available across New Zealand.
Shipping costs will be displayed before checkout.

Local pickup from Auckland is available by arrangement only.

Please note that we do not operate a showroom.
The location is for collection only.
Please ensure the correct part is finalised before picking up.

If you would like to arrange a pickup or have any questions about shipping, please contact us via the chat window.

Return Policy


Returns are accepted in accordance with our Return & Refund Policy.

Please ensure the correct part number and compatibility before ordering.
Returns due to incorrect orders or change of mind are subject to a restocking fee of 20% or $15.00 (whichever is greater).

Original shipping costs are non-refundable.

If you receive an incorrect, damaged, or faulty item, please contact us as soon as possible with photos.
We will arrange a replacement or refund in line with our policy.

This policy does not affect your rights under the Consumer Guarantees Act 1993.

Compatibility Notice


Compatibility may vary by model, production version, or configuration.

Please confirm the part number and engine or machine model before ordering.

Parts are supplied according to part numbers and technical specifications, not photos.

We recommend comparing the removed original part with dimensions and specifications before purchase.
