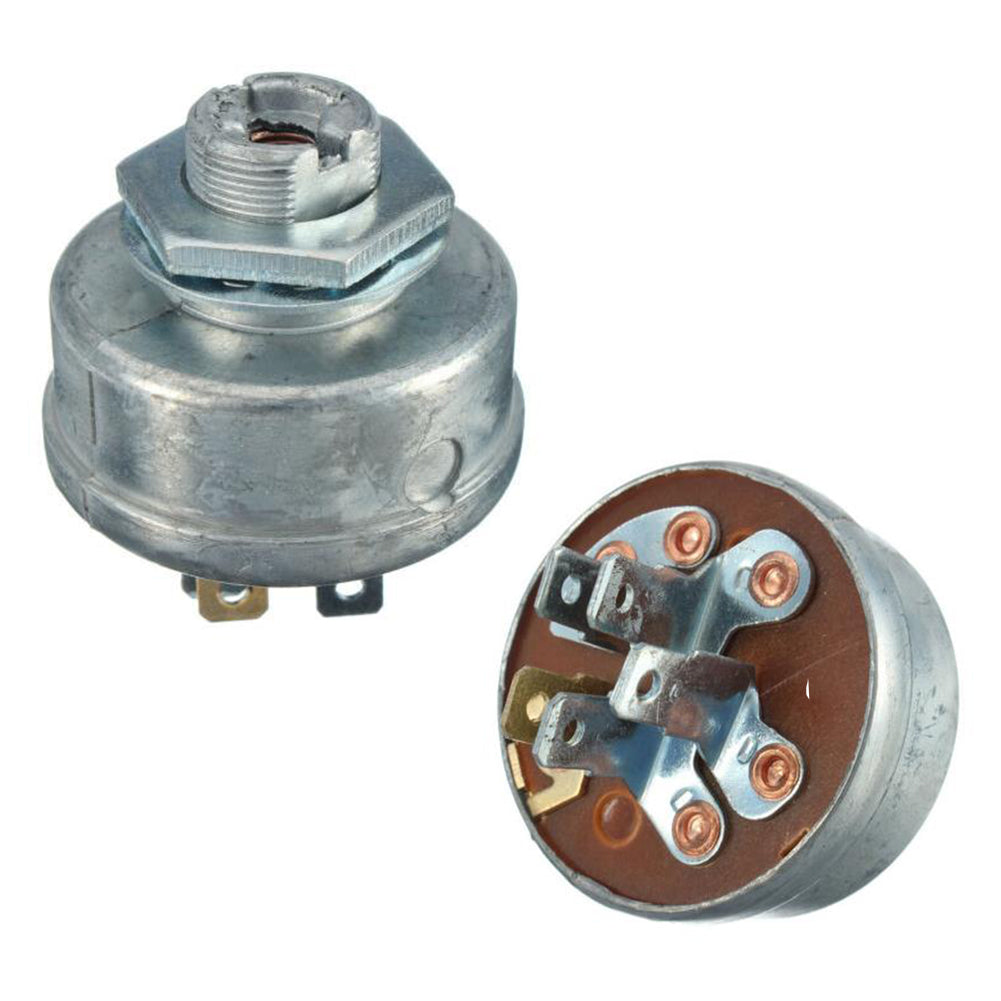

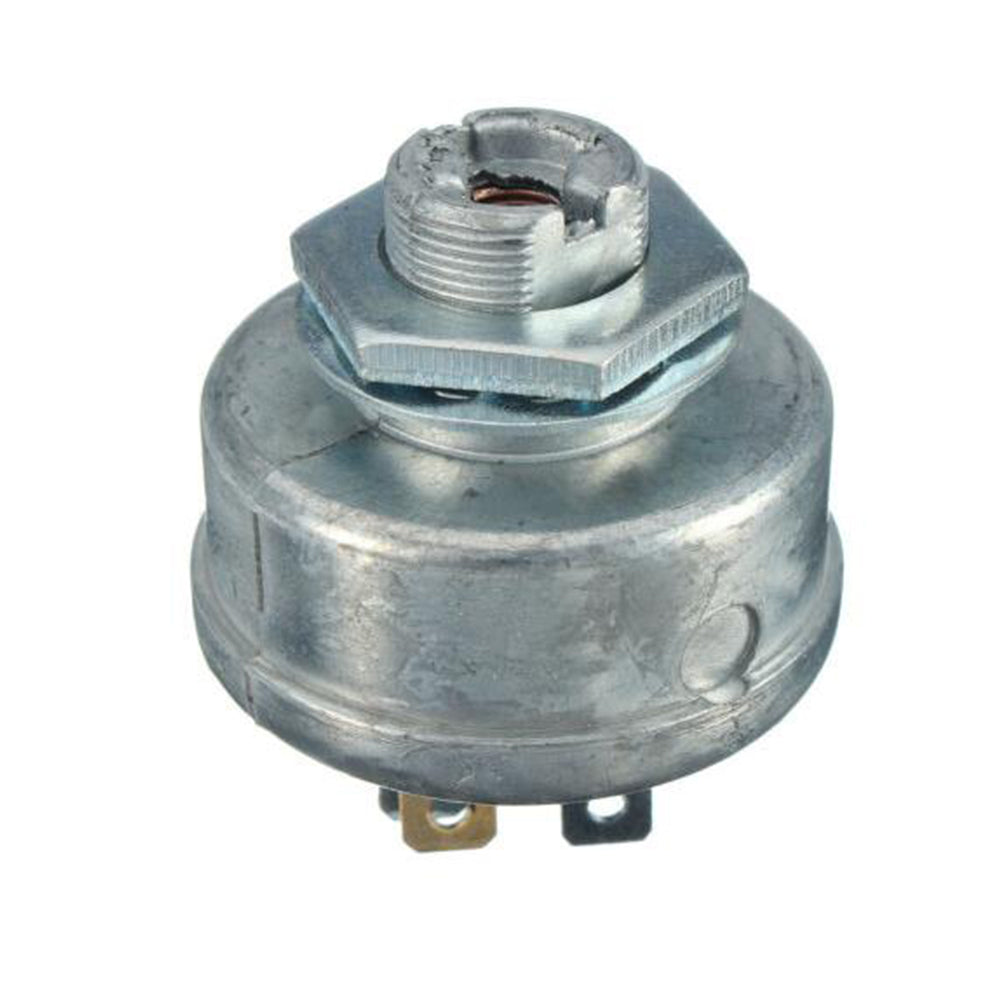

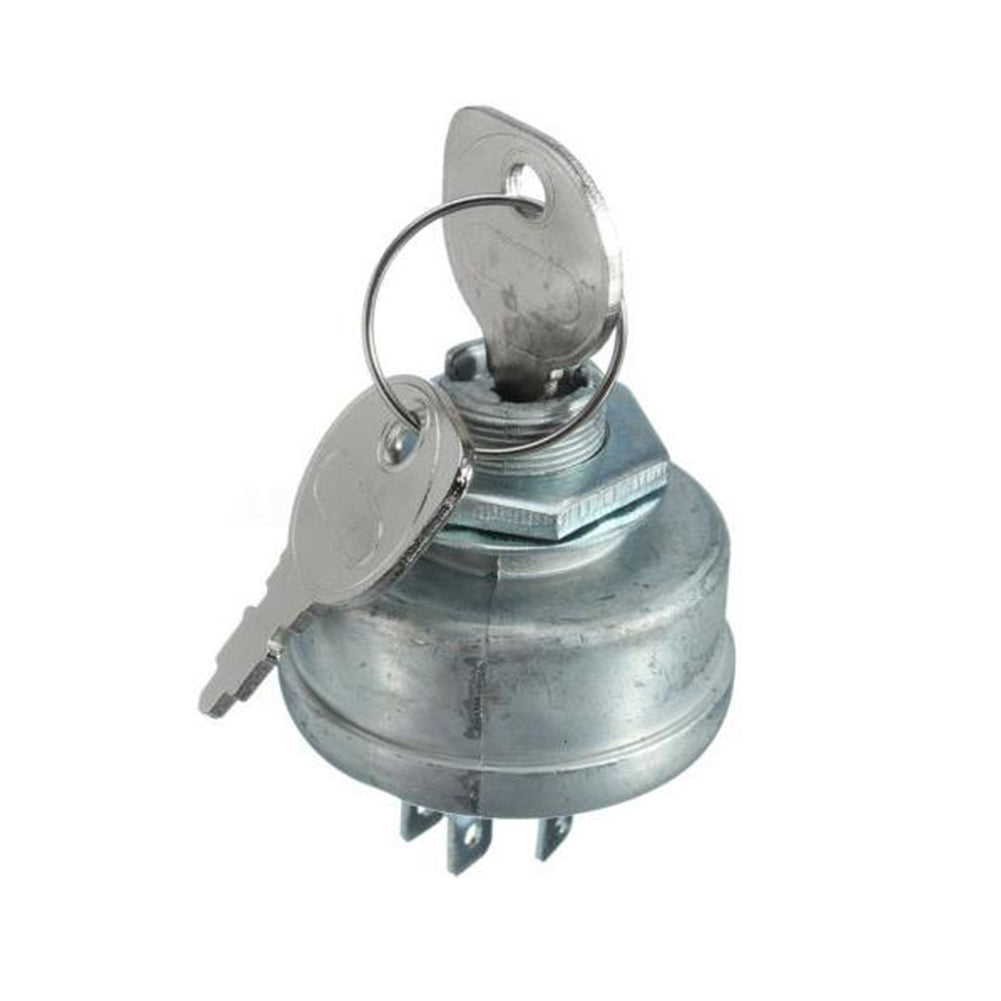

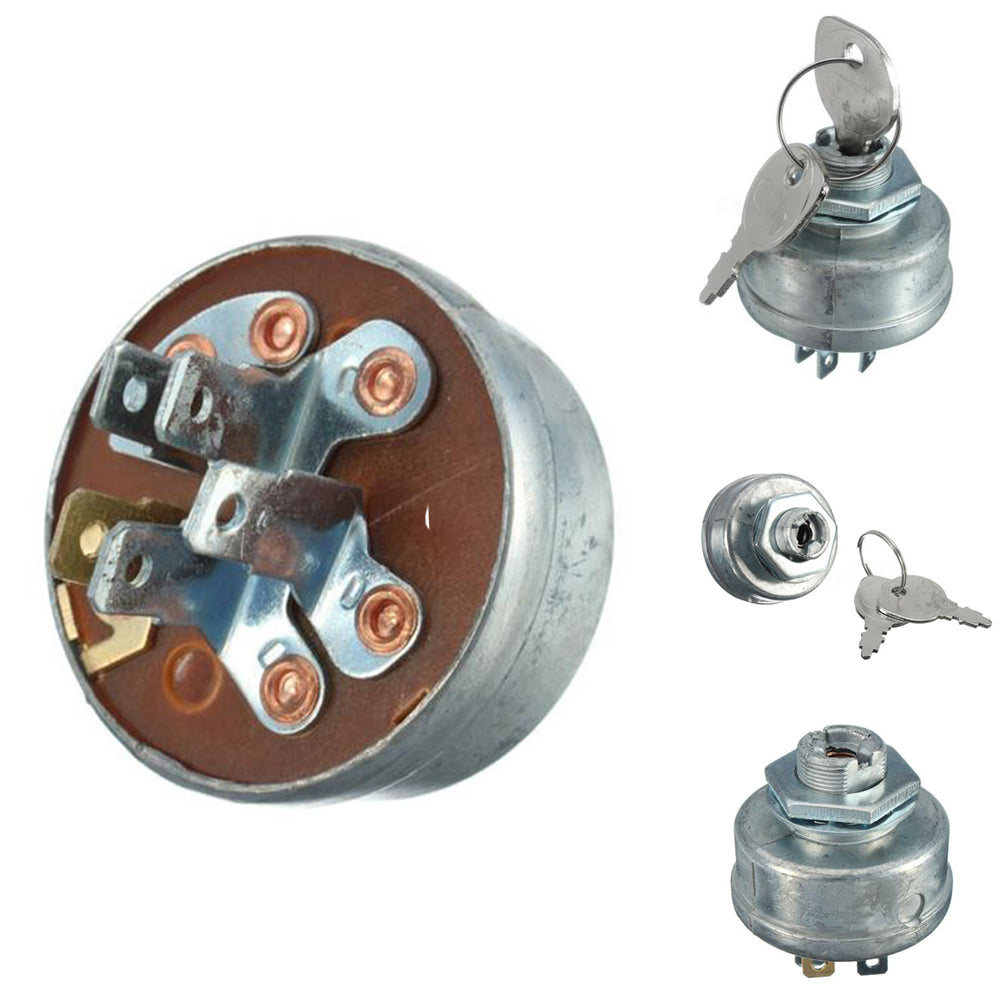

AM102551 5 Pin metal Ignition Switch with 2 keys MTD 725-0267 925-0267
OEM Part No: AM102551, 21064, 725-0267A, 925-0267, 532365402, 23-0660, 3497644，7250267A, 9250267, 230660
This part replaces but not limit:
00012120, 00012120P
135798, 1734196, 1754207, 1754207P
1813185, 1813523, 1813578, 1820080, 1908112, 1908112P
725-0267, 725-0267A, 725-0267AP, 725-0267B, 725-3004, 900-2003, 925-0267, 925-0267A, 7250267, 7250267A, 7250267AP, 7250267B, 7253004, 9002003, 9250267, 9250267A
GW-1734196, GW-1754207P, GW-1908112, GW-1908112P, GW-B1754207, GW1734196, GW1754207P, GW1908112, GW1908112P, GWB1754207
IH-132295-C1, WD-900-2003, WD-C37516, IH132295C1, WD9002003, WDC37516
Fits selected Poulan Pro models.
Fits selected McCulloch models.

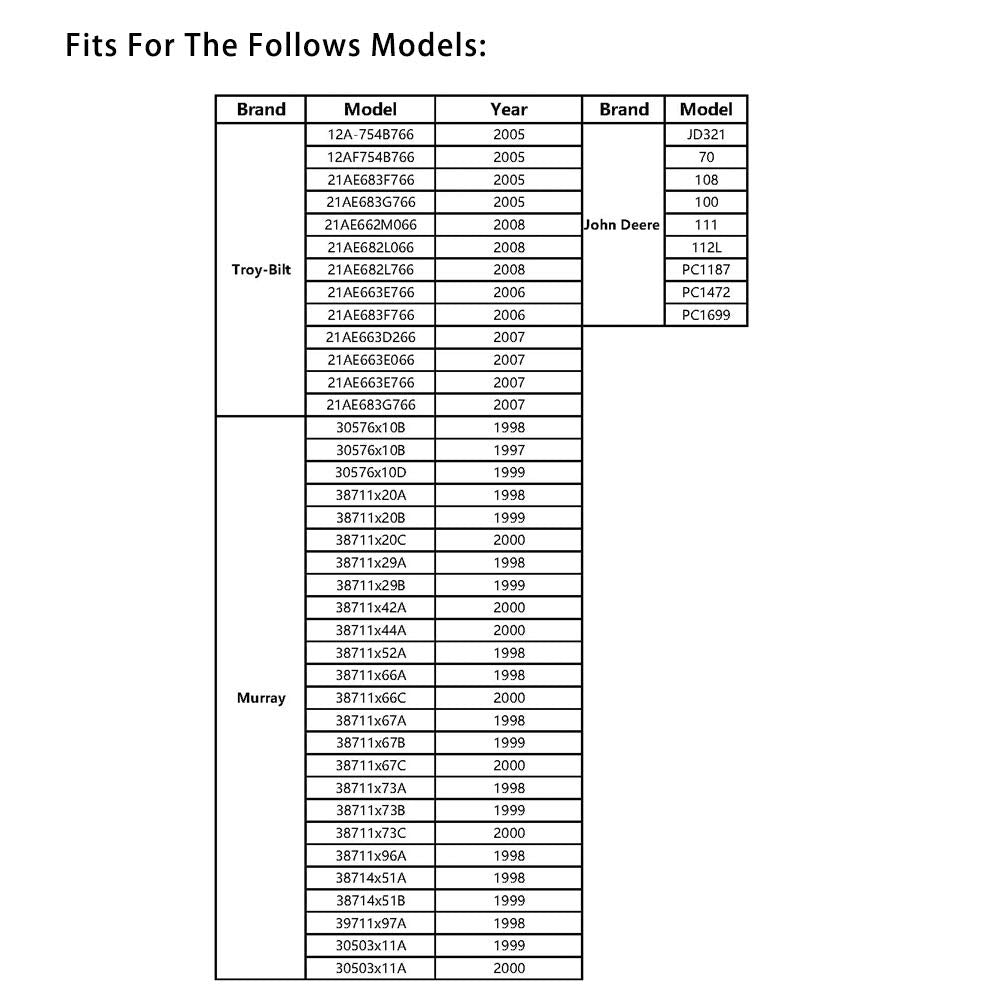

Fits Murray models
Fits Toro models
Fits MTD models 133B352D672, 134B352D672, 135B452D672, 135C450D678, 135L450C678, 135N765N678, 136C450D670, 136C450D678, 136C561C672, 136H451D648, 136L450C678, 136N472F643, 136N473F643, 136N765N678, 136T675G678, 136T765N678, 13A1452C670, 13A1674G401, 13A325643, 13A334671, 13A5451F502, 13A5472F502, 13A7660G352, 13A7660G752, 13A8673G009, 13AA458C670, 13AA475C678, 13AA478A620, 13AA478A670, 13AA478A678, 13AA478E678, 13AA478F670, 13AA660F670, 13AC451D670, 13AC458C670, 13AE414E643, 13AH451F500, 13AH451F670, 13AH452F500, 13AI678G670, 13AL450C670, 13AM475F670, 13AM672G088, 13AM678F670, 13AM693F671, 13AP418E670, 13AP478A670, 13AQ672G607, 13AS678G670, 13AT765N678, 13CP798N678.
Fits selected Husqvarna models.
Fits selected Jonsered models.
Fits selected Craftsman models.

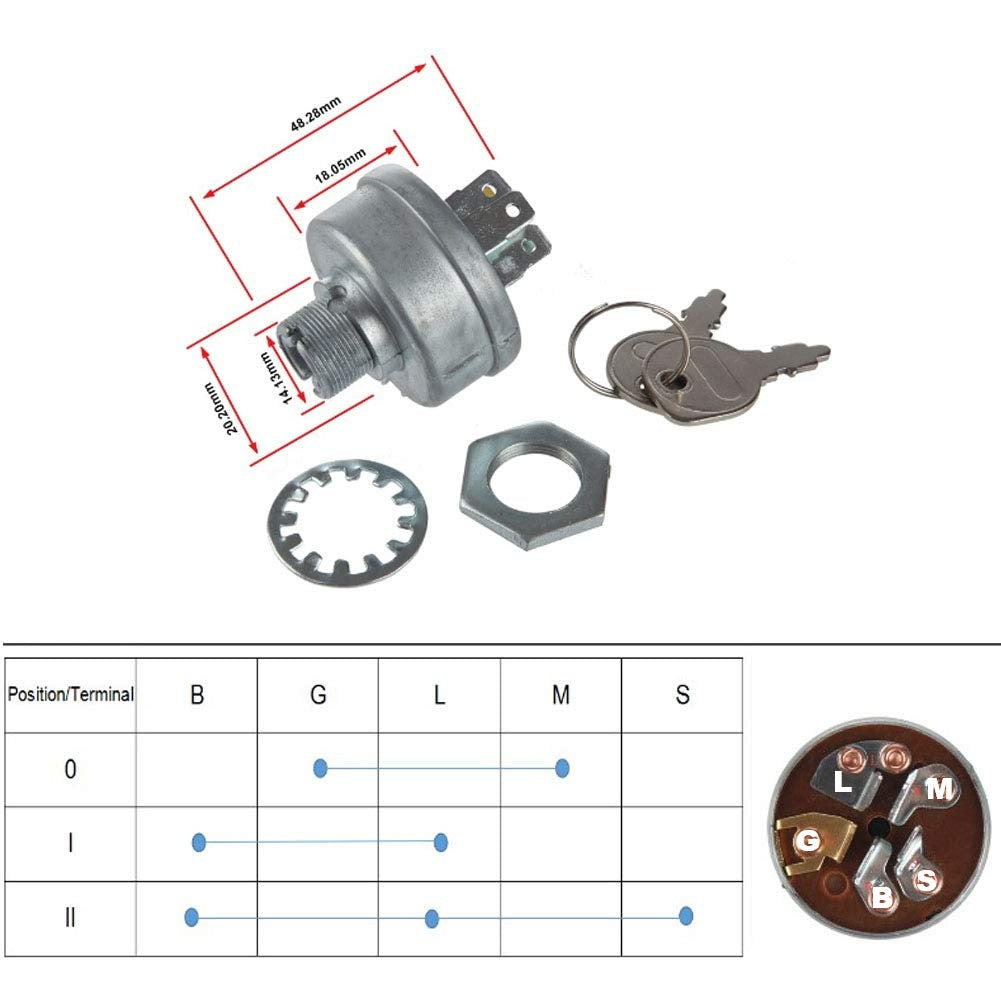

Please check your wiring carefully against the following terminal functions:
B (Battery) – 12V power from battery
S (Start) – to starter solenoid
M (Magneto) – engine kill wire (grounds to stop engine)
G (Ground) – chassis ground
L (Lights/Accessories) – optional output

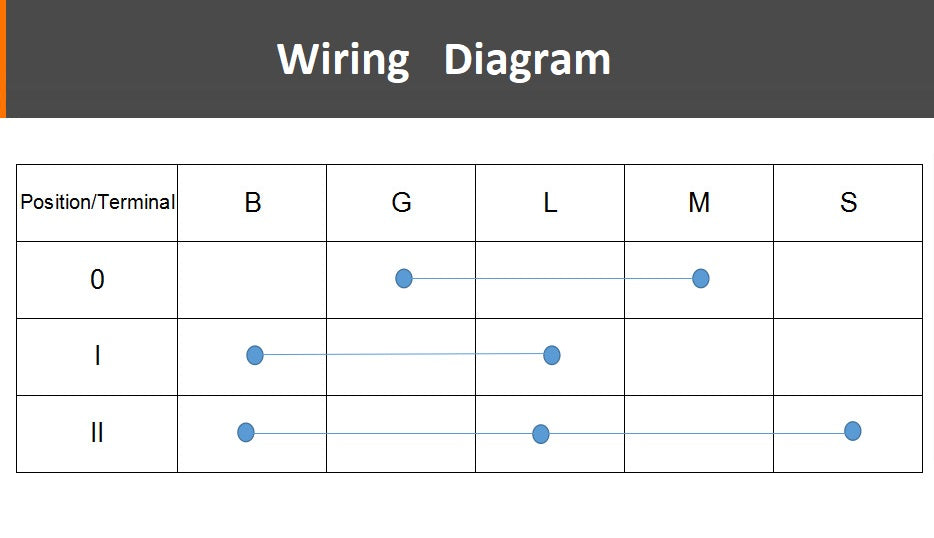

Key positions:
OFF: M + G connected (engine off)
RUN: B + L connected
START: B + S connected
If wires are connected incorrectly (especially B to ground or M), it will blow the fuse immediately.
Package Content:
1pc X Ignition Starter Switch
2pcs X Keys
